SEALEVEL | USB Digital

SeaDAC Lite DIO-8

Now includes NABL Calibration Certificate.
Rs. 22860.00

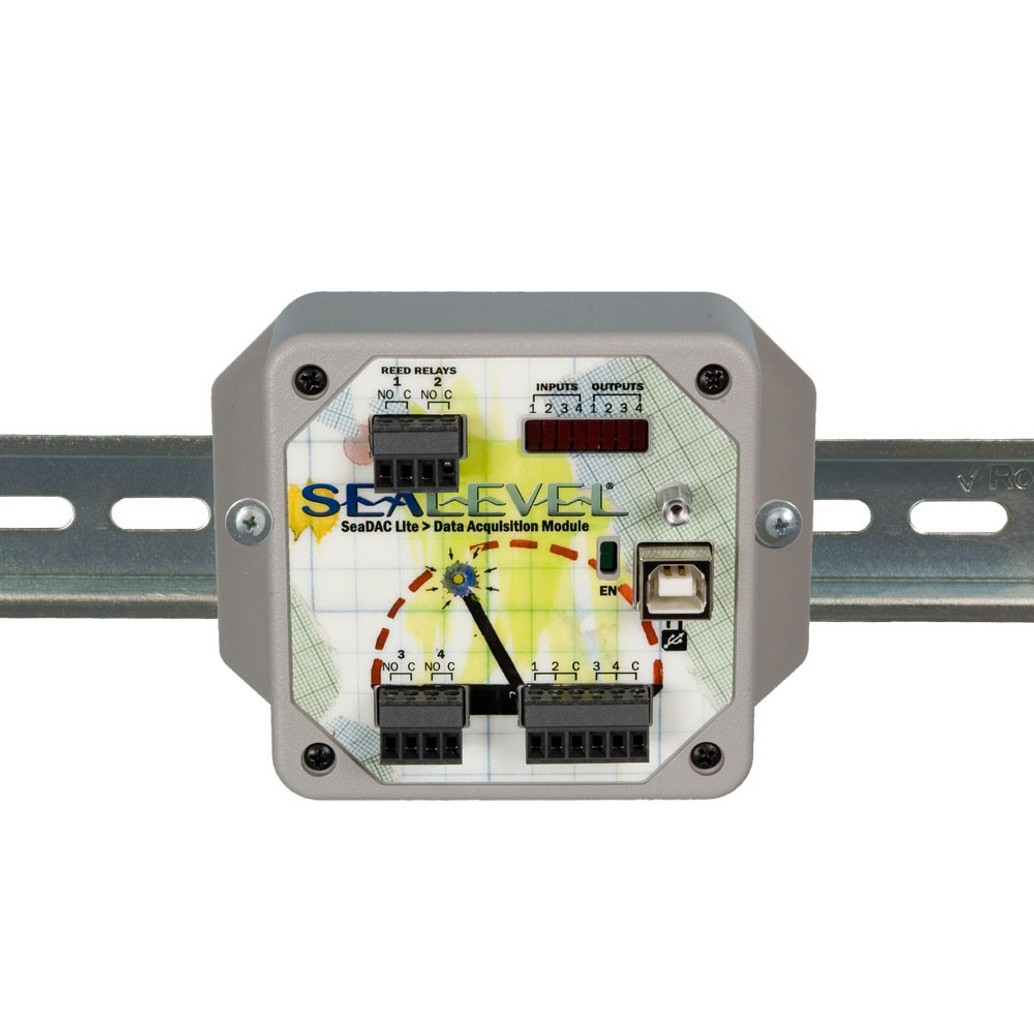

The SeaDAC Lite - USB to 4 Isolated Inputs; 4 Reed Relays offers 4 optically isolated inputs and 4 dry-contact Reed relay outputs, ideal for low-current control and monitoring applications. It supports USB connectivity and provides 3500VDC isolation for safe operation in industrial environments..

Quantity:
- +
Product added to cart successfully
  • Detail
  • Special Features
  • Specification

The SeaDAC Lite - USB to 4 Isolated Inputs; 4 Reed Relays enables reliable control and monitoring of industrial equipment through a USB connection. The 4 optically isolated inputs provide 3500VDC isolation to protect equipment from transients and ground loops. The 4 Reed relay outputs offer long-life switch closures, perfect for low-current devices. Each relay has its own discrete common, and input pairs share a common, making wiring simple via 3.5mm removable terminal blocks.

The SeaDAC Lite module features Sealevel’s SeaLATCH USB port for secure connectivity, preventing accidental cable disconnections. It is USB bus powered, eliminating the need for an external power supply. The SeaMAX software suite makes installation and operation easy on both Windows and Linux operating systems.

  • 4 optically isolated inputs with 5-30VDC range and 3500VDC isolation

  • 4 Reed relay outputs, ideal for low-current switching applications

  • Status LEDs for easy I/O activity monitoring

  • USB bus powered, no external power supply required

  • Sealevel’s SeaLATCH USB port with locking connector to prevent accidental disconnections

  • USB Type B connection for secure data transfer

  • Rugged plastic enclosure for easy mounting on walls or inside panels

  • SeaMAX software suite for easy installation and operation on Windows and Linux systems

  • Operating temperature range: 0°C to 70°C, with optional extended temperature range (-40°C to +85°C)

Feature Details
Host Interface USB
Operating Temperature 0°C to 70°C (32°F to 158°F)
Power Requirement +5V @ 500mA
Storage Temperature -50°C to 105°C (-58°F to 221°F)
USB Specification USB 1.1 Compliant; USB 2.0 Compatible
Family SeaDAC Lite
Dimensions 4.3" (L) x 3.4" (W) x 1.3" (H)
Humidity Range 10-90% Relative Humidity/Non-Condensing
